Alan L. Kafka
Weston Observatory
Department of Earth and Environmental Sciences
In the evening of October 16, 2012 residents of Hollis Center, Maine felt the ground shake from a magnitude 4.7 earthquake centered in southern Maine. This earthquake was widely felt across New England and into adjacent New York, New Jersey and Canada. Near the epicenter people reported that their whole house shook and that it felt like a train going right through their house.
On the morning of December 20, 1940, the Earth suddenly quaked near Lake Ossipee, New Hampshire. An earthquake with a magnitude of about 5.3 had occurred. Damage was reported in a broad region across New England, including chimneys thrown down, cracked plaster, broken dishes, and overturned objects.On November 20, 1755, the Boston Weekly News-Letter reported "a most terrible Shock of an Earthquake: The conditions were so extreme as to wreck the Houses in this Town to such a degree that the Tops of many Chimnies, and some of them quite down to the Roofs, were thrown down. . . ." This earthquake, with a magnitude of about 6.0, was centered off the coast of Cape Ann, MA.
Yes, it's true. Earthquakes really do occur on a regular basis in New England. Notable examples of earthquakes that caused damage in New England and adjacent areas are: the earthquake off the coast of Cape Ann, MA in 1755; two earthquakes near Ossipee, NH in 1940; and an earthquake near New York City in 1884. In spite of this regular occurrence of earthquakes in the Northeastern United States, most people living in New England probably think of places like California or Japan, rather than New England, when they hear the word "earthquake." While Californians have learned to expect earthquakes, residents of New England more likely consider the ground beneath their feet to be "solid as a rock." Nonetheless, the record of earthquake activity in the United States shows that, while the highest level of activity is, of course, in the western part of the country, earthquakes are quite common in many areas of the Eastern United States, including New England.
Why then do earthquakes occur in New England? What causes earthquakes in major seismic zones like California and Japan? Why are earthquakes more common in California than in the Northeast US, and how does earthquake activity in California differ from that in the Northeast?
Unlike the situation in the Northeastern US, most California earthquakes occur near a major boundary separating two of the Earth's tectonic "plates", the North American plate and the Pacific plate. In the late 1960s, a revolution occurred in the geosciences when scientists discovered that earthquakes, volcanoes, and geological activity are concentrated in well-defined zones that outline the edges of plates. There are about a dozen such plates. This theory of the Earth, known as plate tectonics, is now accepted as the overall explanation of how the Earth works. Plate interiors are much more stable than plate boundaries, and the theory of plate tectonics accounts for most of the large earthquakes in California, Japan, and Alaska, to name a few of the infamous seismic zones.
Of course the real world is more complicated than this model suggests. While the two largest historically-documented earthquakes to occur in California (1906, San Francisco and 1857, Fort Tejon) did rupture a plate boundary along the well-known San Andreas fault, when looked at in detail, earthquakes in California are rather diffusely distributed in the vicinity of the plate boundary. Furthermore, earthquakes are scattered throughout the interior of the North American plate (as well as throughout the interiors of all plates).
With this perspective on plate boundary earthquakes, let us look at earthquakes in the Northeastern US.
The historical record of earthquakes in the Northeastern US and adjacent areas goes back to the 1500s, and a number of seismographs were operating in this region beginning in the early 1900s. Routine reporting of instrumental data on earthquakes in this region began in the late 1930s. The number of seismic stations in the Northeast increased significantly between 1970 and 1974. By 1974, area seismologists were operating regional seismic networks in the Northeastern US. With the advent of modern technology, computers, and the internet, the number and quality of seismic stations has grown over the past several decades, and high-quality digital recordings of earthquakes in this region are now available for research and public information purposes within minutes of when a Northeastern US earthquake occurs.

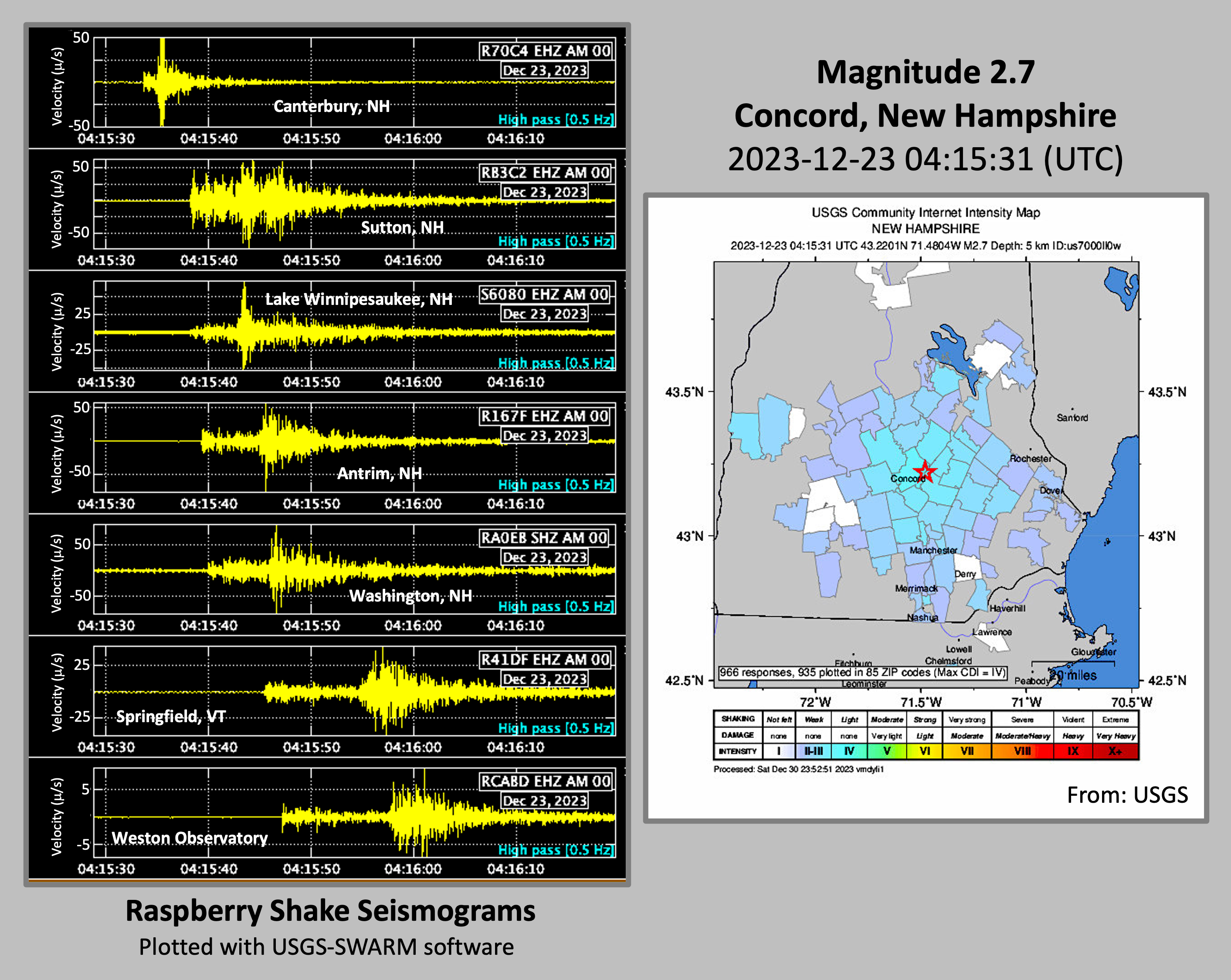

A new development in monitoring the patterns of earthquake activity in regions of interest to seismologists is the integration of low-cost citizen-science seismographs into the research seismic networks to increase the density of seismic stations. Of particular interest in this regard is the development of the “Raspberry Shake“ (RS, raspberryshake.org) seismograph, and the widespread deployment of RS instruments, currently distributed at more than 2,000 sites around the world. The RS consists of a low-cost seismometer integrated with a “Raspberry Pi“ computer system (raspberrypi.org). This low-cost seismograph currently sells for about $500, and that price is low enough that many interested citizen scientists are buying them and operating them. The figure below shows RS recordings of a recent magnitude 2.7 earthquake that occurred near Concord, NH, as it was recorded by RSs in the Northeast US. Recordings from these low-cost, citizens science devices are increasingly providing valuable data in support of the endeavor to track earthquake activity in the Northeast (and many other regions around the world) enhancing the database for research on earthquakes in this region, and engaging citizen scientists with research scientists in exploring why the Earth quakes in this region.
These continuing developments and upgrades in monitoring earthquake activity in the Northeast US ensure increasing quality of seismicity databases that are necessary to support research into understanding earthquakes and earthquake hazards in this highly populated region. Based on these modern databases, as well as historical studies of earthquakes in this region, we are able to analyze the maps of seismicity for this region shown below.

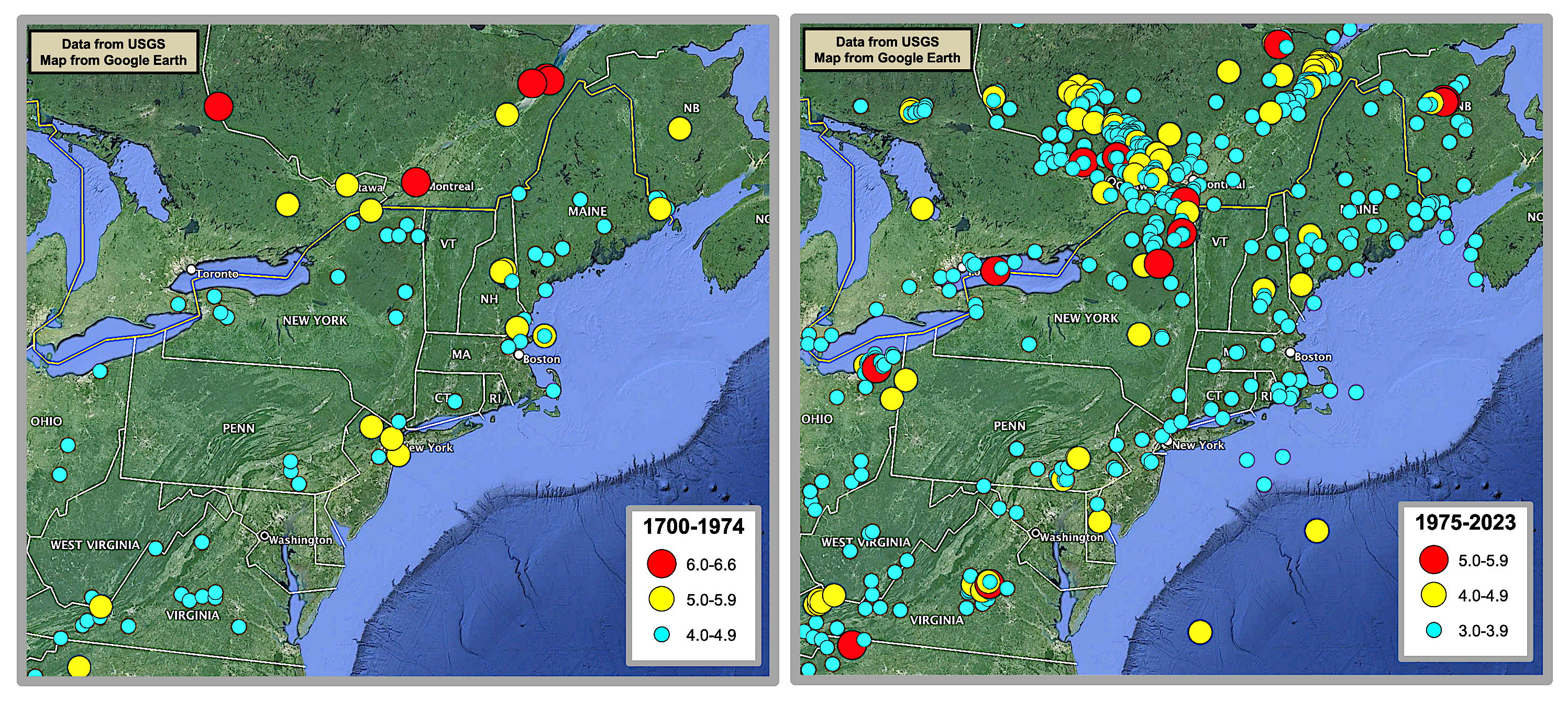

Earthquakes in the Northeastern US. Left: 1700 to 1974. Right: 1975 to 2023. Data from US Geological Survey
There is a general correlation between the distribution of earthquake epicenters determined from the 1975-2023 network data and that of earthquakes that occurred between 1700 and 1974. In the 1700-1974 historical map, there is a hint of a northwest trending zone of seismicity extending from northern NY State into adjacent Canada. That trend is much more pronounced in the 1975-2023 network seismicity map. During both periods of time there was earthquake activity in New Jersey and the greater New York City area, as well as along coastal New England and in most of Maine and New Hampshire. Also, we see significant activity in the vicinity of the St. Lawrence River in both maps. Some other areas that show only a hint of activity in the historical map, such as the southern Great Lakes area near the US-Canada border, appear as more clearly defined zones of activity in the network era map. In addition to these clusters of activity, diffuse seismicity has occurred throughout most of the region during both periods of time.
One of the largest historically-documented earthquakes in the United States occurred in New Madrid, Missouri, deep in the interior of the North American plate. This earthquake--actually a sequence of three major shocks in late 1811 and early 1812--is a dramatic example of the fact that quite large earthquakes occur in plate interiors. These earthquakes are called intraplate earthquakes. Intraplate earthquakes are common occurrences, globally as well as specifically in the Northeastern US.
The occurrence of earthquakes in the Northeastern US apparently violates the plate tectonic model, and a major research challenge is how to explain earthquakes in the Northeast within the context of plate tectonics as the primary framework for understanding the relationship between earthquakes and tectonic processes. What stymies seismologists' attempts to figure out why the Earth quakes here is that the earthquake process in plate interiors seems to be more complex than at plate boundaries. Unlike the situation in California, there is no obvious relationship between earthquakes and geologically mapped faults in most intraplate areas.
With plate tectonics under their belt and a seemingly endless supply of research funds flowing in, a number of geologists and geophysicists in the mid-1970s turned their attention to a (presumably) straightforward problem: What causes intraplate earthquakes? These were heady times for seismologists, and some were quite confident that the problem would be easily resolved. Hypotheses abounded. With a minimum of data available, it sometimes seemed like there was more fanciful hypothesis-generating than hypothesis testing. Two such well-known hypotheses intended to explain earthquakes in the Northeast were the supposed existence of a "Boston-Ottawa seismic zone" and the presumed activity of the "Ramapo fault" (an ancient geological fault in northern New Jersey and southeastern New York State). In spite of many such attempts to explain the cause of earthquakes in the Northeast, however, none of these specific hypotheses have fared very well in light of new data gathered in the past few decades.
At the present time, a commonly accepted explanation for the cause of earthquakes in the Northeast is that "ancient zones of weakness" are being reactivated in the present-day stress field. In this model, preexisting faults and/or other geological features formed during ancient geological episodes persist in the intraplate crust, and, by way of analogy with plate boundary seismicity, earthquakes occur when the present-day stress is released along these zones of weakness. Using this model as a guide, much of the research on Northeastern US earthquakes has involved attempts to identify preexisting faults and other geological features that might be reactivated by the present-day stress field. While this concept of reactivation of old zones of weakness is commonly assumed to be valid, in reality the identification of individual active geologic features in intraplate regions has proven to be quite difficult. Unlike the situation for many plate boundary earthquakes, it is not at all clear whether faults mapped at the Earth's surface in the Northeast are the same faults along which the earthquakes are occurring.
How well then does this pre-existing zones of weakness model work in the Northeastern US? Like all other parts of the Earth, the bedrock of the Northeast has been affected by many episodes of geological activity, each lasting many millions of years. Geological features (including ancient faults) that are "scars" of these geological episodes are found throughout the Northeast and adjacent areas; nonetheless, it has been hard to find any unequivocal relationship between these geological features and seismicity in this area.
During the past half billion years, the Earth's crust underlying the Northeast has been the site of two major geological episodes, each of which has left its imprint on the region's bedrock. Between about 450 million years ago and about 250 million years ago, this area was the site of a "continental collision," in which the ancient African continent collided with the ancient North American continent to form the supercontinent known as Pangaea. Beginning about 200 million years ago, the present-day Atlantic ocean began to form as plate tectonic forces rifted the continent of Pangaea. The last major episode of geological activity affecting the bedrock in the Northeast occurred about 100 million years ago, during the Mesozoic era, when "continental rifting" led to the opening of the present-day Atlantic ocean.
Since this Mesozoic rifting episode was the most recent major tectonic event in the Northeastern US, one might expect that the geological features formed during the Mesozoic era would be likely places for present day earthquakes to occur. Also, some research on intraplate earthquakes on a global scale suggests that ancient continental rift zones might be likely locations for major intraplate earthquakes. Thus, one example of proposed hypotheses to explain the connection between geological features and the occurrence of earthquakes in this region is that the current seismicity is correlated with Mesozoic rift basins.
The remains of the Mesozoic rifting episode in the Northeast are found in a number of ancient continental rift zones, notably the "Hartford rift basin" in central Connecticut and central Massachusetts, and the "Newark rift basin" in the greater New York City area. In addition, Mesozoic rifts are believed to be buried beneath sediments along continental margins of the Eastern US. In my own research group, we have found that there does appear to be a concentration of earthquakes in the area surrounding the Newark basin, which would be expected if Mesozoic basins are the active features in this intraplate environment. It is less obvious, however, whether such a concentration of earthquakes exists in the area surrounding the Hartford basin. Furthermore, it is very difficult to determine whether the observed concentration of earthquakes around the Newark basin is a long-term (i.e., geological) phenomenon or just an artifact of the particular period of time during which we have been observing the historical and instrumentally recorded seismicity.
Such an ambiguous relationship between geological features and earthquakes is typical of seismological studies in intraplate areas, which makes it very difficult to determine which (if any?) parts of Northeast are more prone to earthquakes than others.
In spite of all these complications and enigmas--we are not even sure where the earthquakes are most likely to occur, let alone when they are likely to occur--Northeast US seismologists are often asked if it is possible to predict earthquakes in this area. Not only is it impossible to predict earthquakes in the Northeast, but even at plate boundaries routine prediction of earthquakes remains an elusive goal. Seismologists make the distinction between specific predictions of earthquakes and long-term forecasts of earthquakes. In the late 1970s, seismologists were quite optimistic about eventually being able to forecast, and perhaps even predict, earthquakes. Today, in light of new data gathered in recent decades, predicting earthquakes seems to be far more complex than it was once thought to be.
At least for the time being, the future time and place of any particular earthquake is hard to pin down. We can of course say with certainty that future earthquakes will occur in the Northeast (including in New England). But as for when, where, and how big . . . the scientific study of these Northeast earthquakes has a long way to go..
"We muddle through life making choices based on incomplete information..."
- Larry Gonick and Woollcott Smith, The Cartoon Guide to Statistics
Life is uncertain. No matter what we do, there will always be risks that we accept as part of our daily lives. No matter how advanced our scientific knowledge of the Earth becomes, it is unlikely that there will ever come a time when all natural disasters are predictable. Nonetheless, although we can't predict when specific earthquakes will strike, our knowledge of the earthquake process in the Northeast does make it possible to estimate the odds of damaging earthquake vibrations striking your town.
Recognizing that there are many unknowns and uncertainties regarding the cause of earthquakes and where they are likely to strike, the U.S. Geological Survey (USGS) has produced a series of National Seismic Hazard Maps based on their assessment of the current state of knowledge regarding earthquake activity across the United States. These maps were developed in the hope of providing the most accurate information possible regarding ground shaking hazard, and are updated as the knowledge base increases and new scientific findings on earthquake processes become available. The maps show the amount of earthquake generated ground shaking that is predicted to occur at a given location.
An example of the 2023 version of the National Seismic Hazard Maps developed by the USGS is shown below. Because of the difficulty of identifying specific seismically active geological faults in the Northeast, the level of seismic hazard in the northeastern part of the USGS map is based primarily on the past record of seismic activity. Earlier versions of the National Seismic Hazard Maps placed more emphasis on the locations of geologically mapped faults (and other types of geological features) in the Northeast. These maps must be understood as a work in progress...
|

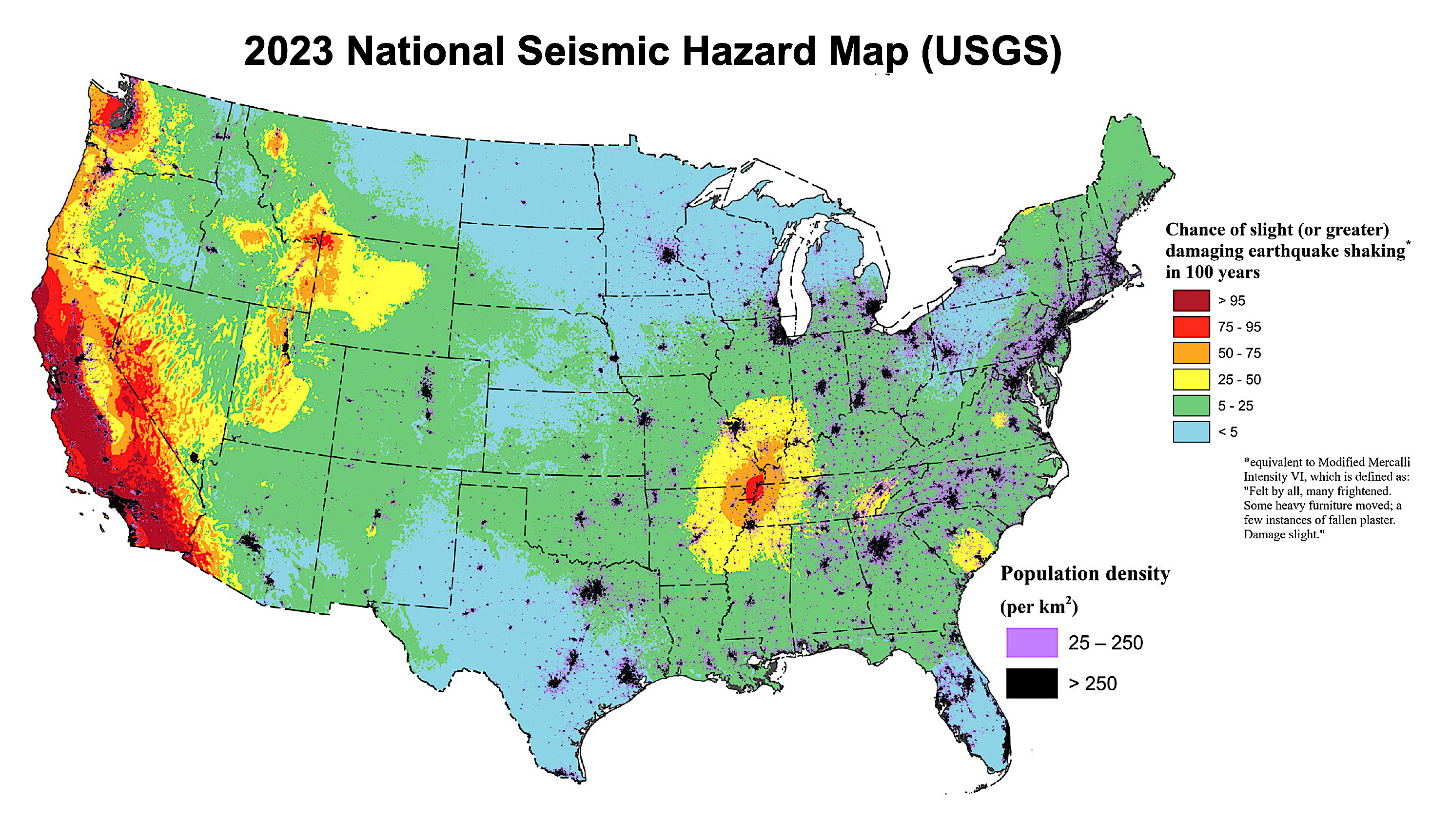

Example of the National Seismic Hazard Maps developed by the US Geological Survey in 2023, showing variation in estimated earthquake hazard in the US lower 48 states. |
The map shown above is color-coded to display the estimated chance of slightly (or greater) damaging earthquake shaking occurring in 100 years. For the Northeast, it is estimated that there is a 5 to 25% chance of that level of shaking during that length of time. That doesn’t sound like something major to worry about; most Northeast US earthquakes discussed here are quite small, and are not of any great concern for the people living here. Only a small number are large enough (about magnitude 3 or greater) to be noticeably felt beyond the immediate epicentral region. Damage of any significance doesn’t start until about magnitude 5; a bit larger than the size of the 2012 magnitude 4.7 earthquake in Maine.
Much of the story presented here might therefore be considered to be merely academic. But that’s not the whole story because significantly large earthquakes have occurred in the Northeast US, including in New England. Each individual will decide for themselves how much they will be fearful of the possibility of large earthquakes happening here. But it is only prudent to consider the possibility of a very high impact (albeit quite low-probability) earthquake occurring here. And that, of course, highlights the big question for seismologists working in this region: Just how big of an earthquake might eventually strike here and what might be the consequences? That’s a question we are not likely to be able to answer for a very long time. But the earthquake monitoring and research work discussed here will hopefully provide necessary data and knowledge to enable future generations of seismologists to get closer to answering that big question. And that should help to mitigate the potential effects of large earthquakes occurring in New England (and/or in other parts of the Northeast).
Although seismologists have not yet found an unequivocal answer to the question, "Why Does the Earth Quake in New England?", earthquake hazard maps generally show that in most parts of the Northeast US, including New England, there is a low, but not insignificant, chance that damaging earthquake vibrations will strike. Just how much damage could be caused by earthquakes in this region is still unknown, but in spite of these uncertainties, the information presented in earthquake hazard maps can be used as input for the design and construction of buildings and infrastructure and for public policy decisions requiring an assessment of earthquake risk. The better we can understand the cause of earthquakes in the Northeastern US and the nature of ground motion generated by those earthquakes, the better we will be able to provide the necessary information to estimate (and plan for) earthquake risk in the Northeast US, and in New England in particular.
Bolt, B.A., Earthquakes (Fifth Edition, 2006 Centennial Update) W.H. Freeman and Company, 2006.
Ebel, J.E., New England Earthquakes: The Surprising History of Seismic Activity in the Northeast, Globe Pequot Press, 2019.
Ebel, J.E., and A.L. Kafka, Earthquake Activity in the Northeastern United States, in Neotectonics of North America, D.B. Slemmons, E.R. Engdahl, M.D. Zoback, and D.D. Blackwell, eds., Geological Society of America, 1991.
Johnston, A.C., and L.R. Kanter, Earthquakes in Stable Continental Crust, Scientific American, March 1990.
Kafka, A.L., Musings on Earthquakes and Related Matters, akafka.wordpress.com, 2024.
Kafka, A.L., "Cellular Seismology": Does Past Seismicity Delineate Zones Where Future Earthquakes are Likely to Occur, Musings on Earthquakes and Related Matters, akafka.wordpress.com, August, 2012.
Kafka, A.L., Faults and Earthquakes in the Greater New York City Area: Reflections at the Intersection of Science, the Media, and the Public, Musings on Earthquakes and Related Matters, akafka.wordpress.com, September, 2008.
Kafka, A.L., Does Seismicity Delineate Zones Where Future Large Earthquakes will Occur in Intraplate Environments?, In Continental Intraplate Earthquakes: Science, Hazard, and Policy Issues, Geological Society of America Special Paper 425, Edited by S. Stein and S. Mazzotti, 2007.
Kafka, A.L., Public Misconceptions About Faults and Earthquakes in the Eastern United States: Is it our own fault?, Seismological Research Letters, 71(3), 311-312, 2000.
Kafka, A.L. and Walcott, J.R., How Well Does the Spatial Distribution of Smaller Earthquakes Forecast the Locations of Larger Earthquakes in the Northeastern United States?, Seismological Research Letters, 69(5), 428-439, 1998.
Kafka, A.L. and P.E. Miller, Seismicity in the Area Surrounding Two Mesozoic Rift Basins in the Northeastern United States, Seismological Research Letters, 67(3), 69-86, 1996.
Kafka, A.L., M.A. Winslow, and N.L. Barstow, Earthquake Activity in the Greater New York City Area: A Faultfinder's Guide, in Field Trip Guidebook, 61st Annual Meeting, N.Y. State Geological Association, D. Weiss, ed., p. 177-205, 1989..
Kafka, A.L., E.A. Schlesinger-Miller and N.L. Barstow, Earthquake Activity in the Greater New York City Area: Magnitudes, Seismicity and Geologic Structures, Bulletin of the Seismological Society of America, 75(5), 1285-1300, 1985.
Raymo, C. and M.E. Raymo, Written in Stone: A Geological and Natural History of the Northeastern United States, The Globe Pequot Press, 1989.
Reiter, L., Earthquake Hazard Analysis: Issues and Insights, Columbia University Press, 1994.
Seih, K., and S. LeVay, The Earth in Turmoil: Earthquakes, Volcanoes, and Their Impact on Humankind, W.H. Freeman and Company, 1998.
Revised: July 2, 2024
